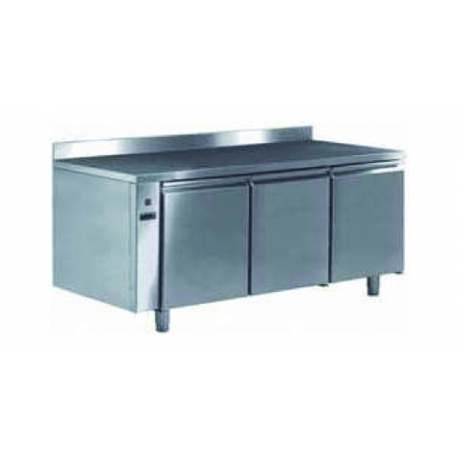

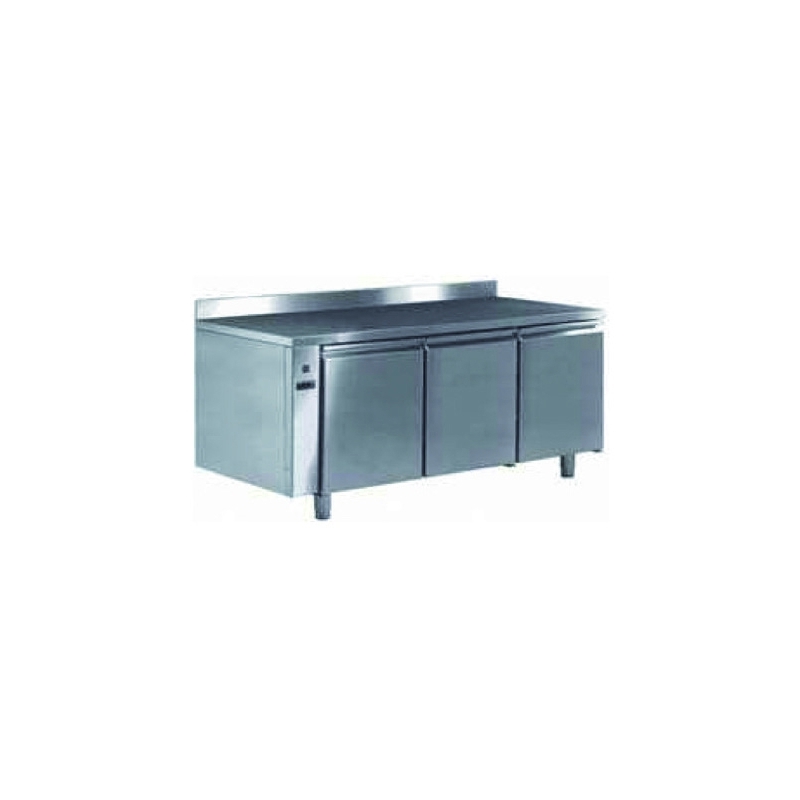

Ventilated positive refrigerated worktable gn 1/1 - depth 700 mm
SS AISI 30
Interior and exterior monocoquein SSAISI304
Insulation 50mmin injected high-density polyurethane,CFCandHCFC free
Full door with2or3drawerswith horizontal SS handles
Worktop in SSAISI304 with polyurethane insulation, with or without splashback (by request)
Condensing unit or without condensing unit + regulator
Refrigeration: ventilated with evaporator (lacquered to prevent corrosion) or static version
Working temperature:0°/+8°C(ventilated);+2°/+8°C(static);-18°/-20°C(ventilated)
Digital temperature regulator
Automatic defrosting by simple pause button for version 0°/+8°C;by electrical resistance for version-18°/-20°C ; automatic evaporation of defrosted water by hot gas for version with condenser; direct evacuation for version without condenser
Interior equipment: 1 grid 600x400mmwith SS “U”runners
SS adjustable feet (or on castor by request)
Power230v/50Hz
Test at ambient temperature +40°C–40%H.r.Cl.5
Gasr452Aforversion-18°C/-20°C,gasr134aforversions0°C/+8°Cand-2°C/+8°C
For external condenser:Please consult us
Insulation: thickness 50 mm, polyurethane foam injected at high density
Electric control panel, automatic defrosting
Central evaporation with ventilators
Adjustable feet
Overall height 850 mm – Thickness top 40 mm
Gas R 134a versions 0°C/+8°C and 2°C/+8°C
Power supply: 230V 50Hz
Delivered with 5 sets of runners per door
Reviews
No customer reviews for the moment.
| Combinations | reference | Stock |
|
Dimensions : 1040 x 700 x 850, Top : Without, Group : Without Stock : TPG720 |
TPG720 |
Available now |
|
Dimensions : 1040 x 700 x 850, Top : Central, Group : Without Stock : TPG721 |
TPG721 |
Available now |
|
Dimensions : 1040 x 700 x 850, Top : Splashback, Group : Without Stock : TPG722 |
TPG722 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Without, Group : Without Stock : TPG730 |
TPG730 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Central, Group : Without Stock : TPG731 |
TPG731 |
Available now |
|
Dimensions : 1500 x 700 x 850, Top : Splashback, Group : Without Stock : TPG732 |
TPG732 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Without, Group : Without Stock : TPG740 |
TPG740 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Central, Group : Without Stock : TPG741 |
TPG741 |
Available now |
|
Dimensions : 1960 x 700 x 850, Top : Splashback, Group : Without Stock : TPG742 |
TPG742 |
Available now |
|
Dimensions : 1260 x 700 x 850, Top : Without, Group : With Stock : TRG720 |
TRG720 |
Available now |
|
Dimensions : 1260 x 700 x 850, Top : Central, Group : With Stock : TRG721 |
TRG721 |
Available now |
|
Dimensions : 1260 x 700 x 850, Top : Splashback, Group : With Stock : TRG722 |
TRG722 |
Available now |
|
Dimensions : 1720 x 700 x 850, Top : Without, Group : With Stock : TRG730 |
TRG730 |
Available now |
|
Dimensions : 1720 x 700 x 850, Top : Central, Group : With Stock : TRG731 |
TRG731 |
Available now |
|
Dimensions : 1720 x 700 x 850, Top : Splashback, Group : With Stock : TRG732 |
TRG732 |
Available now |
|
Dimensions : 2180 x 700 x 850, Top : Without, Group : With Stock : TRG740 |
TRG740 |
Available now |
|
Dimensions : 2180 x 700 x 850, Top : Central, Group : With Stock : TRG741 |
TRG741 |
Available now |
|
Dimensions : 2180 x 700 x 850, Top : Splashback, Group : With Stock : TRG742 |
TRG742 |
Available now |
